Engineering design frequently demands a delicate balance. You must carefully weigh pure optical clarity against extreme mechanical durability. In these demanding scenarios, transparent polycarbonate material often emerges as the default choice. It succeeds reliably where glass shatters and acrylic (PMMA) critically fails under sudden impact. However, engineers must proceed carefully during the material selection phase. Specifying the wrong polymer grade inevitably leads to costly part rejection from hidden internal stress, severe UV yellowing, or unacceptable optical distortion.
This guide exists to solve exact specification challenges in manufacturing. We provide a structured technical evaluation framework to streamline your engineering decisions. You will learn how to properly specify the correct transparent engineering plastic for both high-end optical components and rugged safety applications. By understanding inherent material trade-offs, you can prevent structural failures and achieve superior optical performance.
Grade Differentiation: Selecting between optical-grade and general-purpose PC dictates baseline light transmission and internal stress levels.
The Transmission Ceiling: Standard transparent PC peaks at around 90% light transmittance PC; applications requiring higher clarity necessitate anti-reflective (AR) coatings.
Inherent Trade-offs: Impact resistant polycarbonate is inherently soft and prone to scratching; hard-coating specifications are mandatory for high-wear safety environments.
Manufacturing Constraints: True optical clarity requires SPI A-1 or A-2 mold finishes and stringent injection molding parameters to prevent birefringence and sink marks.
Engineers often group clear plastics together. However, structural enclosures demand completely different performance baselines compared to precision optical lenses. You must establish strict success criteria early in the design phase.

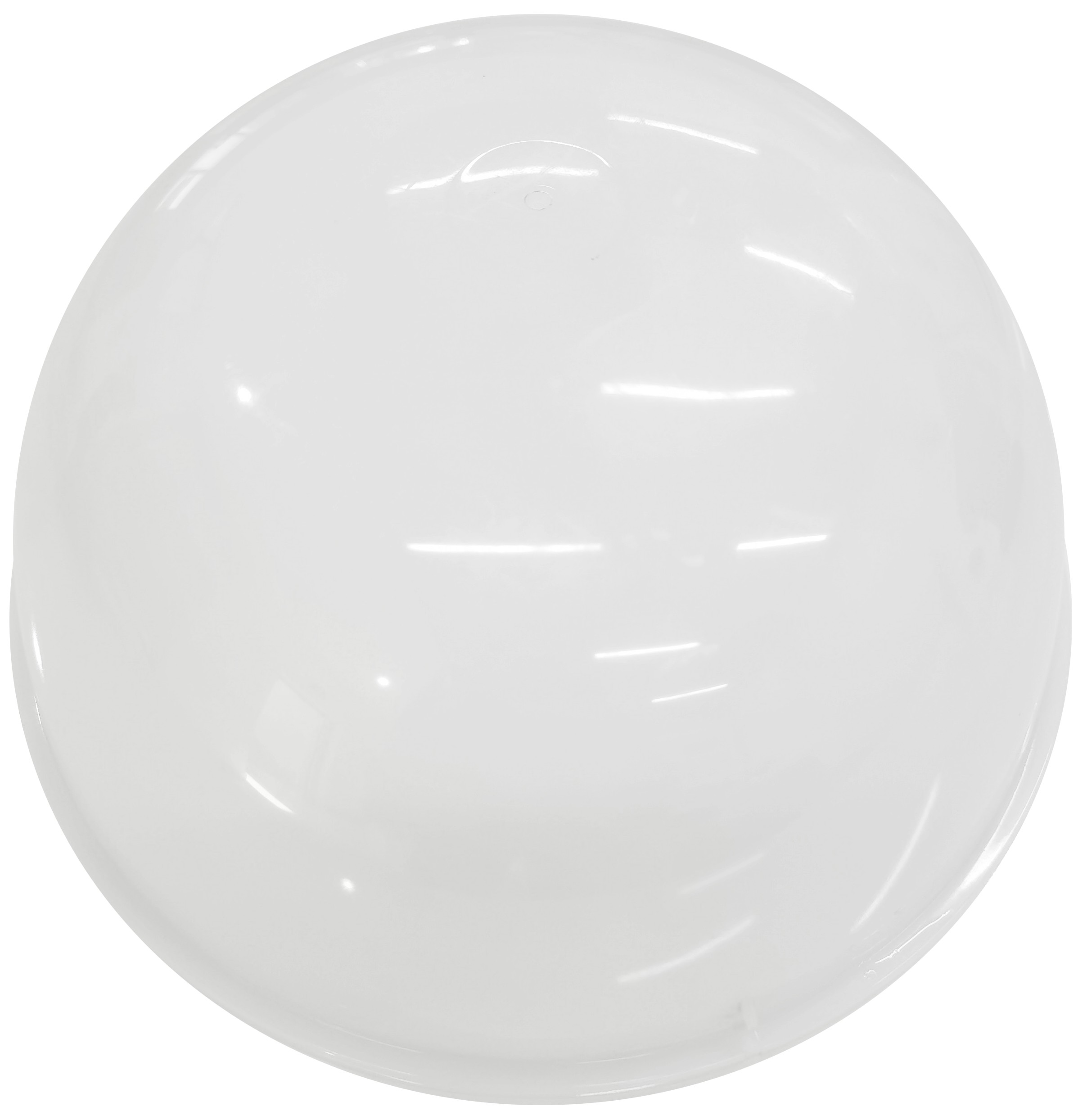

Designing optical components requires uncompromising purity. Whether you are engineering LED light guides, automotive headlamp lenses, or medical device covers, clarity dictates functionality. Standard commercial grades simply cannot meet these stringent demands.
Success Criteria: The material must achieve a high refractive index. Polycarbonate typically delivers an index of 1.586. You also need minimal haze and exceptionally low birefringence. Birefringence indicates internal stress, which warps light passing through the part.
Material Choice: You must specify specialized optical PC material. Manufacturers formulate these specific grades for extreme resin purity. They offer highly consistent melt flow behavior. This consistency prevents flow marks and internal stress variations during injection molding. Common examples include dedicated Makrolon LED grades or Lexan optical series.
Common Mistake: Specifying general-purpose clear resin for thick light guides. The resulting internal molding stress will create rainbow-like distortions (birefringence) under polarized or LED light sources.
Safety applications prioritize kinetic energy absorption. When a broken tool bit strikes a CNC machine guard, optical perfection matters less than raw shatter resistance. These components endure harsh mechanical abuse daily.
Success Criteria: High Izod impact strength remains the primary metric. You need uncompromising shatter resistance and reliable environmental durability. The part must deflect energy and remain intact to protect operators.
Material Choice: Standard transparent grades usually suffice here. You must prioritize high molecular weight formulations. Higher molecular weight translates directly to greater mechanical toughness. You sacrifice a tiny fraction of optical perfection to gain massive structural reliability.
No engineering material is perfect. Polycarbonate excels at absorbing impacts, but its chemical structure creates vulnerabilities. You must actively engineer solutions to mitigate these inherent risks.
We must address a hard reality. Unmodified polycarbonate scratches very easily. Its exceptional impact strength comes from molecular flexibility. This same flexibility creates a soft surface. If you wipe a bare safety visor using a dry shop rag, you will immediately introduce micro-scratches.
You cannot deploy bare polycarbonate in high-wear environments. Specifying hard coatings is absolutely mandatory for safety visors, architectural glazing, and industrial touch displays. Manufacturers typically apply polysiloxane or polyurethane coatings. Polysiloxane thermal-cure coatings offer glass-like scratch resistance. Polyurethane UV-cure coatings provide excellent flexibility alongside decent abrasion resistance. Always budget for these secondary coating processes when designing touch-heavy components.
Transparent polymers degrade under prolonged ultraviolet exposure. When deployed outdoors, raw polycarbonate undergoes photo-oxidation. The material bonds break down, causing severe yellowing. Micro-cracks also form on the surface, drastically reducing impact strength.
You must map out environmental exposures accurately. For occasional outdoor use, bulk UV-stabilized grades work well. The manufacturer blends UV absorbers directly into the resin. For permanent outdoor installations like bus shelters or agricultural glazing, bulk stabilization falls short. You must specify UV-blocking co-extrusions. This process places a concentrated, protective UV cap layer directly over the base polymer. It acts like sunscreen, preserving the structural core.
Chemical vulnerability remains a critical failure point for industrial safety enclosures. Polycarbonate reacts poorly to many common industrial fluids. When exposed, the polymer chains relax, leading to rapid environmental stress cracking (ESC).
You must keep these parts away from ketones, aromatic hydrocarbons, and strong alkaline solutions. Industrial cleaners containing ammonia will destroy the material's integrity. Many modern CNC cutting fluids also attack bare polycarbonate. If your machine guard requires frequent chemical cleaning, you must specify a specialized chemical-resistant hard coating. Alternatively, you might need to evaluate inherently resistant, though more brittle, materials like PETG for specific fluid environments.
Engineers often struggle to translate physical requirements into exact material datasheets. You must understand the realistic limits of the polymer. Do not over-specify requirements beyond physical capabilities.
Setting realistic optical expectations prevents costly design revisions. Many engineers expect glass-like perfection. Standard acrylic (PMMA) achieves roughly 92% light transmittance. However, uncoated polycarbonate cannot match this number due to its higher refractive index, which increases surface reflection.
Premium uncoated grades max out lower than acrylic. Reaching an authentic 90% transmission threshold requires exceptionally pure materials. Premium 90% light transmittance PC represents the realistic ceiling for standard injection-molded parts. If your optical sensor or camera lens strictly requires 95% transmission, bulk material changes will not help. You must specify secondary anti-reflective (AR) vacuum coatings to eliminate surface bounce back.
Comparative Chart: Optical Baseline Properties | |||
Material | Refractive Index | Max Uncoated Transmittance | Impact Resistance (Relative) |
|---|---|---|---|
Standard Glass | 1.520 | ~90% | Very Low |
Acrylic (PMMA) | 1.490 | ~92% | Low |
Polycarbonate (PC) | 1.586 | ~89 - 90% | Extremely High |
Melt Flow Rate heavily dictates both manufacturing success and final part strength. MFR measures how easily the melted plastic flows under pressure. You must match the MFR to your specific geometry.
When designing thin-walled optical lenses, you need the material to fill the mold rapidly before cooling. High MFR PC resin is absolutely required here. It flows easily, minimizing internal molding stress and preventing optical distortion. Conversely, low MFR resins feature longer polymer chains. These long chains tangle together, maximizing impact resistance. Therefore, low MFR grades are strictly preferred for thick, heavy-duty safety shields. They are harder to mold but deliver ultimate toughness.
Industrial applications strictly require certified compliance. You cannot rely on generic datasheets when human safety or regulatory approval is at stake.
Flammability: Verify UL 94 ratings. Many electrical enclosures demand V-0 or V-2 ratings to prevent fire propagation. Certain PC grades include non-halogenated flame retardants to maintain clarity while achieving V-0.
Biocompatibility: Medical devices and food processing guards require FDA or NSF compliance. Ensure the manufacturer uses certified safe mold-release agents.
Safety Standards: Protective eyewear and face shields must pass ANSI Z87.1 high-mass impact tests. The specified grade must explicitly support this impact threshold at the designed wall thickness.
Selecting the perfect resin is only half the battle. The manufacturing process ultimately dictates the final clarity. A flawless material shot into a poorly finished mold yields a cloudy, unusable part.
The mold surface dictates the final part surface. Any microscopic defect in the steel transfers directly to your lens or shield. Achieving true transparency requires expensive, time-consuming manual mold polishing.
You must explicitly specify SPI finishes on your technical drawings. SPI A-1 (Grade #3 Diamond) represents the highest standard, producing a flawless, mirror-like finish ideal for precision optics. SPI A-2 (Grade #6 Diamond) provides excellent clarity for general transparent covers and safety shields. Budget accordingly, as achieving an SPI A-1 finish demands high-grade tool steel (like H13 or 420 Stainless) and significant skilled labor hours.
Transparent parts hide nothing. Opaque plastics easily mask minor molding defects, but transparent polymers amplify them. You must design to prevent common injection molding risks.
Flow Marks: These wavy lines occur when the resin cools too quickly during injection. You need optimized gate sizes and precise mold temperature control.
Weld Lines: When two flow fronts meet around a hole or obstacle, they create a visible line. This line reduces optical clarity and creates a weak point susceptible to impact failure.
Silver Streaks: Polycarbonate is highly hygroscopic. It absorbs moisture from the air. If the manufacturer fails to dry the resin thoroughly before molding, trapped moisture turns to steam, creating white silver streaks inside the part.
Sink Marks: Thick sections cool slower than thin sections. As the thick interior shrinks, it pulls the surface inward, creating a divot. This heavily distorts optics. Maintain uniform wall thickness wherever possible.
Sometimes, complex geometries prevent perfect mold polishing, especially on deep interior features. In these cases, evaluate secondary post-processing operations.
Vapor polishing uses solvent fumes to melt the microscopic surface roughness, restoring clarity to machined or hard-to-reach molded areas. It provides excellent results but adds significant cost, poses environmental health hazards, and can introduce stress cracking if not annealed properly. Mechanical buffing offers a safer alternative but struggles to reach inside deep pockets. Always weigh these secondary costs against investing in better primary mold tooling upfront.
Navigating dozens of material datasheets causes engineering paralysis. Use this four-step framework to narrow down your options objectively and efficiently.
Determine the absolute non-negotiable requirement. Is the strict requirement optical or mechanical? If your device measures light diffusion and transmission precisely, filter out any resins with low purity or high birefringence. If the part protects an operator from flying debris, prioritize high Izod impact ratings and ignore minor haze percentage differences.
Map out all external risks the part will face. Does it sit outside in direct sunlight? Select a UV-stabilized grade. Will technicians wipe it down with harsh industrial solvents? Budget for a polysiloxane hard coating. Will it see abrasive, high-touch use? Ensure the coating specification matches the expected abrasion level.
Align your material choice with your physical design. Review the specified grade’s shrinkage rate and melt flow properties. Discuss these with your toolmaker. If you selected a low-MFR impact grade, your toolmaker might need to increase gate sizes and adjust cooling channels to push the highly viscous resin through the mold.
Never commit directly to expensive high-polish steel tooling without physical testing. We recommend CNC machining initial prototypes from clear optical stock. Follow machining with expert vapor polishing to restore functional transparency. This allows you to test light transmission, structural fit, and impact resistance in the real world. Once the prototype validates your assumptions, you can confidently release capital for SPI A-1 injection molds.
Specifying transparent polymers requires constant compromise. You must balance the demand for absolute optical purity against strict mechanical limits and realistic tooling budgets. Uncoated polycarbonate scratches easily and yellows outdoors, but its unparalleled shatter resistance makes it irreplaceable for rugged environments. By prioritizing either optical precision or raw toughness, you can navigate material datasheets effectively.
Always verify your design before cutting steel. We strongly encourage engineers to consult with injection molding experts early. Submit your CAD files for a comprehensive manufacturability review. A skilled manufacturing partner will ensure your selected grade aligns perfectly with tooling capabilities, ultimately delivering reliable, crystal-clear production parts.
A: Optical-grade polycarbonate features exceptionally high resin purity and tighter manufacturing tolerances. Manufacturers formulate it to deliver highly consistent melt flow rates. This consistency minimizes internal molding stress (birefringence), ensuring precise light transmission and virtually zero optical distortion. Standard clear grades prioritize general toughness and cost over absolute visual perfection.
A: It cannot naturally match them. Standard acrylic achieves roughly 92% light transmittance, while polycarbonate peaks near 90%. Polycarbonate possesses a higher refractive index, causing slightly more surface light reflection. However, applying vacuum-deposited anti-reflective (AR) coatings to polycarbonate allows it to achieve glass-like transmission levels while maintaining extreme impact resistance.
A: Cloudiness usually results from poor mold surface finishes or trapped moisture during injection molding. Rainbow patterns indicate birefringence. This happens when the plastic cools unevenly, freezing high internal stress into the part. This trapped stress polarizes passing light, creating visible rainbow distortions, especially under LED screens or polarized glasses.
A: Yes, it absolutely does. Polycarbonate gains its extreme shatter resistance from its molecular flexibility. However, this flexibility inherently makes the surface quite soft. Wiping bare polycarbonate with a dry cloth causes instant micro-scratching. You must specify polysiloxane or polyurethane anti-scratch coatings for any high-touch or abrasive environments.
