Specifying generic POM material on an engineering drawing is a high-risk shortcut. Polyoxymethylene (POM) serves as a standard for precision components. However, differences between its grades dictate component lifespans. A part might survive a 10-year lifecycle. Alternatively, it could fail prematurely under heavy loads.
"Better performance" remains entirely subjective to the application's primary failure mode. You must determine whether the system faces high-friction wear, chemical degradation, or repeated impact. Ignoring these variables often causes severe structural compromises in the field. Engineers cannot rely on assumptions.
Homopolymer (POM-H): Offers superior mechanical strength, stiffness, and wear resistance, ideal for precision gears and high-load mechanical parts.
Copolymer (POM-C): Provides better dimensional stability, superior chemical resistance (especially to high pH and hot water), and eliminates centerline porosity in extruded profiles.
Specialty Grades: Applications requiring impact resistance must rely on elastomer-modified pom material with high toughness, while high-friction uses benefit from PTFE-filled grades.
Sourcing: Verifying exact POM material specifications with a certified POM material supplier is critical, as substitution between H and C grades often leads to dimensional failures in tight-tolerance machining.
Engineers face a constant battle between over-engineering and under-engineering. Buying expensive specialty grades unnecessarily wastes project budgets. Conversely, under-engineering leads to premature part failure. Such failures trigger expensive warranty claims and damage brand reputation. Selecting the right grade solves this business problem directly.
You cannot simply ask for the "strongest" plastic. Different environments attack polymers in unique ways. We evaluate material suitability across three distinct dimensions. This prevents costly redesigns.
Mechanical Load vs. Creep: We must assess material behavior under continuous stress. Plastics deform slowly under constant loads over time. We call this phenomenon creep. High-load applications require grades designed to resist this slow deformation.
Environmental Exposure: Chemical environments break down molecular bonds. Alkaline solutions and strong caustics destroy incompatible polymers. Hot water presents a specific hydrolysis risk. You must match the polymer backbone to the environmental threats.
Dimensional Tolerances: Precision parts must hold tight tolerances. Post-machining warping ruins perfectly cut geometries. Shrinkage during injection molding creates undersized components. Grade selection directly impacts dimensional stability.
Best Practice: Always document your primary failure mode before reviewing datasheets. Ask your team how the part is most likely to break. Let this answer drive your material selection.
The foundation of all polyoxymethylene decisions rests on one structural difference. Manufacturers produce POM in two primary variations. They synthesize it as either a homopolymer or a copolymer. Each chemical structure yields distinct physical advantages.
Homopolymer POM delivers maximum mechanical strength. It features a highly uniform, highly crystalline molecular structure. This crystallinity packs molecules tightly together.
Strengths: POM-H provides 10-15% higher tensile strength than its copolymer counterpart. It boasts superior rigidity. The high crystallinity also delivers exceptional short-term wear resistance. Engineers frequently select it for high-load gears and heavy-duty structural components.
Risks: This grade is susceptible to centerline porosity. This defect occurs frequently in thick extruded rods. The center cools slower than the exterior during manufacturing. This creates voids. Centerline porosity compromises structural integrity. It also allows gas or liquid leakage through the part center. Furthermore, POM-H offers lower resistance to strong caustics.
Copolymer POM sacrifices absolute strength for enhanced stability. The molecular chain includes comonomers. These disrupt the crystalline structure slightly. This disruption provides unique benefits.
Strengths: POM-C features a continuous dense structure. It eliminates centerline porosity entirely. You can safely machine fluid-handling parts from thick stock. It resists thermal degradation exceptionally well. It survives continuous exposure to hot water and highly alkaline environments.
Risks: It yields slightly lower stiffness compared to POM-H. Tensile strength drops marginally. It cannot bear the same maximum static loads as the homopolymer.
Choose POM-H for maximum mechanical load in dry environments. It excels in precision gears. Choose POM-C for fluid-handling components. Use it for medical devices. Always select POM-C when machining parts from very thick cross-sections.
Comparison Chart: POM-H versus POM-C Characteristics
Performance Attribute | POM-H (Homopolymer) | POM-C (Copolymer) |
|---|---|---|
Tensile Strength & Rigidity | Highest (approx. 10-15% stronger) | Slightly Lower |
Centerline Porosity Risk | High (in thick extruded stock) | None (continuous dense structure) |
Chemical Resistance | Good, vulnerable to high pH | Excellent against strong alkalis |
Hot Water Resistance | Susceptible to hydrolysis over time | Highly resistant to hydrolysis |
Ideal Application | Dry, high-load mechanical gears | Fluid handling, thick machined parts |
Standard homopolymers and copolymers cover most industrial needs. However, extreme environments demand engineered composites. Manufacturers blend the base polymer with specific additives. These fillers alter the mechanical behavior drastically. You must understand these specialty options.
Standard POM can shatter under sudden, sharp impacts. Engineers solve this by compounding POM with thermoplastic elastomers. They typically use TPU or TPE for this modification. The elastomer absorbs shock energy efficiently.

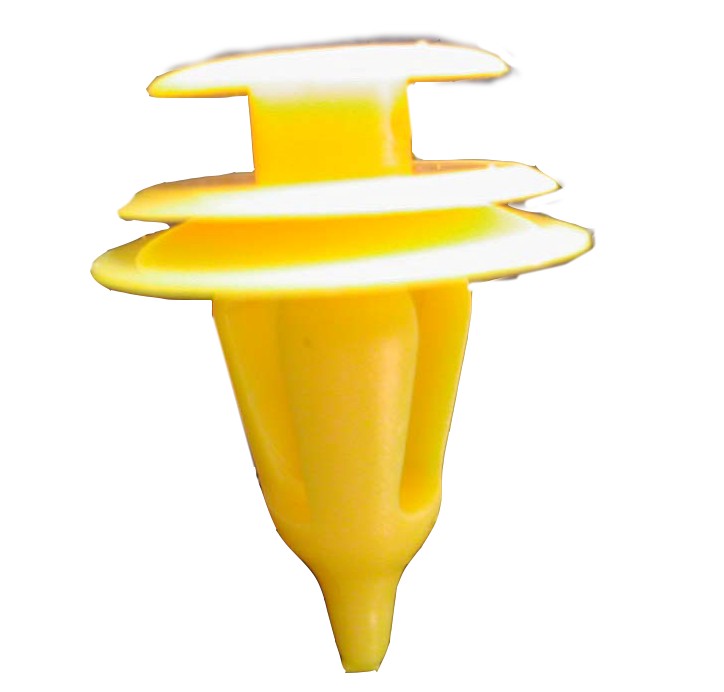

You must know when to specify these grades. They are ideal for snap-fits and automotive fasteners. Any component subjected to repeated shock loads requires this modification. Parts survive impacts where standard POM would crack. This modification creates highly durable assemblies.
There are notable trade-offs. Increased toughness naturally reduces surface hardness. The overall rigidity of the part drops. The material becomes more flexible. You must account for this increased flex in your initial CAD designs.
Moving parts generate friction. Unlubricated sliding components generate excessive heat and wear. Manufacturers add solid lubricants directly into the polymer matrix. They frequently use PTFE (Teflon) or specialized silicone oils.
These additives dramatically reduce the coefficient of friction. They minimize slip-stick behavior in unlubricated moving parts. Slip-stick causes annoying squeaks and jerky movements in mechanisms. PTFE-filled pom creates a smooth, self-lubricating surface. It extends the lifecycle of conveyor wear strips and linear bearings.
Common Mistake: Do not specify PTFE-filled grades for static load-bearing parts. The PTFE filler reduces the structural integrity of the base resin. You pay a premium for a feature you do not need.
Some applications require extreme rigidity at elevated temperatures. Manufacturers add 20% to 30% glass fiber to the base resin. The fibers reinforce the polymer matrix physically.
This addition produces drastic improvements in stiffness. Creep resistance skyrockets. The part holds its shape under immense continuous pressure. However, it creates a highly abrasive surface. The glass fibers protrude microscopically from the part surface. They act like sandpaper. Glass-filled POM will rapidly wear down softer mating components. Use it carefully in moving assemblies.
Designing a perfect part in software is only the first step. You must manufacture it reliably. POM presents unique processing behaviors. You must anticipate these behaviors before cutting metal molds or programming CNC machines. Failure to do so results in scrap and delays.
Both H and C grades machine exceptionally well. Machinists often praise the material for producing clean chips and excellent surface finishes. However, internal stresses pose a hidden threat.
POM-H retains significant internal stress from the extrusion process. Asymmetric machining removes material unevenly. This releases internal stresses unevenly. The part can warp drastically after you remove it from the vise. You must purchase properly annealed stock shapes. Annealing relieves these internal stresses before the machining begins.
Injection molding involves extreme heat. POM degrades rapidly if overheated. Thermal degradation releases formaldehyde gas. This presents serious safety hazards on the factory floor.
Processors must strictly control barrel temperatures. They must employ proper ventilation systems. POM-C offers slightly better thermal stability during processing. This makes it slightly more forgiving for injection molders. Designers should understand that improper molding degrades the polymer before the part even ships.
Injection molded plastics shrink as they cool. This is an unavoidable physical reality. Designers must lock in their specific material choices early. You must decide this before cutting expensive mold tooling.
POM-H and POM-C possess different shrink rates. A mold cut perfectly for a copolymer will produce undersized parts if you switch to a homopolymer later. Molds are rarely perfectly interchangeable between grades. Changing materials often requires expensive mold modifications. Commit to your material early in the product development cycle.
Your engineering calculations mean nothing if the raw material is subpar. The supply chain is full of generic, mislabeled plastics. You must implement a strict vetting process for your vendors. A poor supplier risks your entire production run.
Generic "acetal" labels are insufficient for precision engineering. A reliable supplier must provide complete material test reports (MTRs). They must supply verifiable technical data sheets. These documents prove the material matches its stated physical properties.
Do not accept vague assurances. Request documentation proving batch consistency. If a vendor hesitates to provide technical datasheets, find another vendor immediately.
Assess the supplier's primary business model. Do they specialize in extruded stock shapes for CNC machining? Or do they focus on resin pellets for high-volume injection molding?
Stock shape extrusion requires immense skill. Controlling cooling rates to prevent centerline porosity is difficult. If you buy thick rods for machining, you need a vendor specializing in extrusion. Pellet suppliers focus entirely on different quality metrics. Match the vendor's expertise to your manufacturing method.
Many projects require strict regulatory compliance. Food processing equipment requires FDA or NSF certification. Medical devices demand USP Class VI compliance. If your project touches these industries, your supplier must guarantee lot-to-lot compliance. They must prove all additives and colorants meet these safety standards. A single non-compliant batch can trigger a global product recall.
Selecting the right specification requires a strict evaluation framework. We can summarize this framework into a final decision matrix. "Better" performance simply reflects matching the polymer's chemical backbone to operational stresses. You must evaluate the difference between homopolymers (H) and copolymers (C). You must then assess whether specialty fillers like PTFE or glass fibers solve your specific wear or load problems.
Do not rely on generic labels. Engineers must lock in their mechanical requirements early. Determine your required load limits, environmental exposures, and friction parameters. Consult with a technical plastics supplier. Review the datasheets together. Finally, request material samples for prototyping. Testing physical prototypes validates your desktop engineering and prevents massive production failures.
A: In many cases, yes. This is especially true if the 10% drop in tensile strength does not breach the part's safety factor. Machinists often prefer POM-C to avoid centerline porosity in thick cross-sections.
A: The base POM retains its chemical profile, but the elastomer modifiers may be vulnerable to specific solvents. Chemical compatibility must be verified for the blended composite entirely.
A: Request the Technical Data Sheet (TDS) and Material Safety Data Sheet (MSDS). For critical applications, require Certificates of Analysis (CoA) tied to specific batch numbers to guarantee consistency.
